Name: Used Careray Wireless 14 x 17 DR panel package
SKU: 632175

Used Careray Wireless 14 x 17 DR panel package

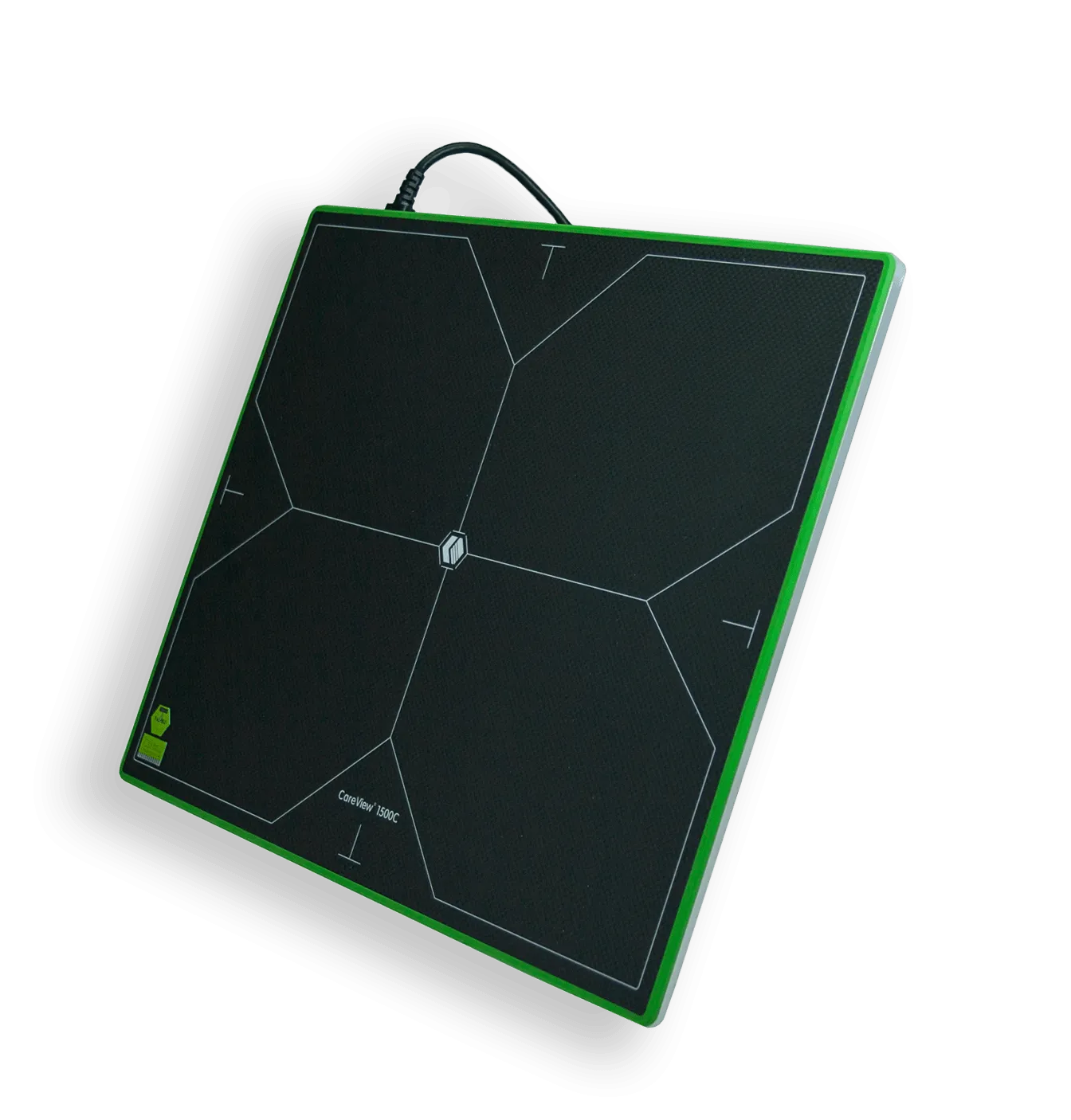

CareView 1500-Cw: 14”x17” Wireless Detector with CesiumIodide (Csl) Scintillator

• Scintillator: Cesium-Iodide (Csl)
Active Area: 14” x 17” (434 x 355mm)
• Pixel Array: 2816 x 2304
• Pixel Pitch: 154 micron (Nyquist Resolution 3.3 lp/mm)
• Grayscale: 16 bits
• Dimensions: 18.1” x 15.1” x .59” (460 x 384 x 15mm) • Weight: 8.1 lbs. (3.7kg)
• AED – Automatic Exposure Detection – Eliminates wiring to generator
• Built-in foldable handle
• rubber insulated frame
• high strength aluminum alloy back
• carbon fiber front Includes: Power Supply: (100-240 V AC), Battery Communication Interface: Gigabit Ethernet 2.4/5GHz, 300Mbps Standard Gigabit Ethernet port for optional wired operation and battery charging 5-Yr Warranty on DR detector for manufacturing defects (See optional detector warranty extension)

*Detector panel warranty term is five years (60 months) Covers mechanical failure and malfunction of the products caused by a deficient design, factory defect and faulty workmanship per manufacturer’s conditions/terms or as specified differently in quote text.

Battery 1 year. 2 -

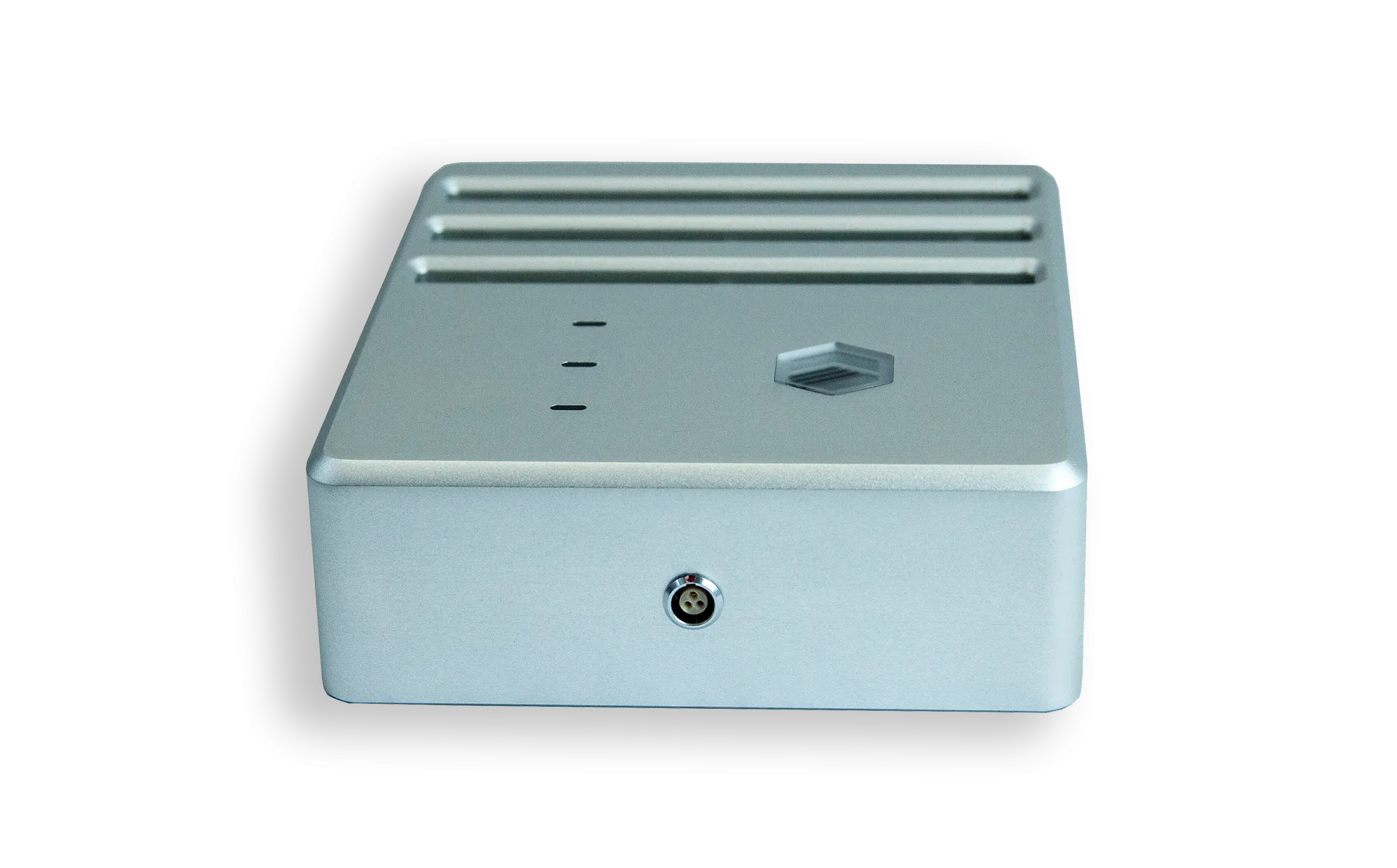

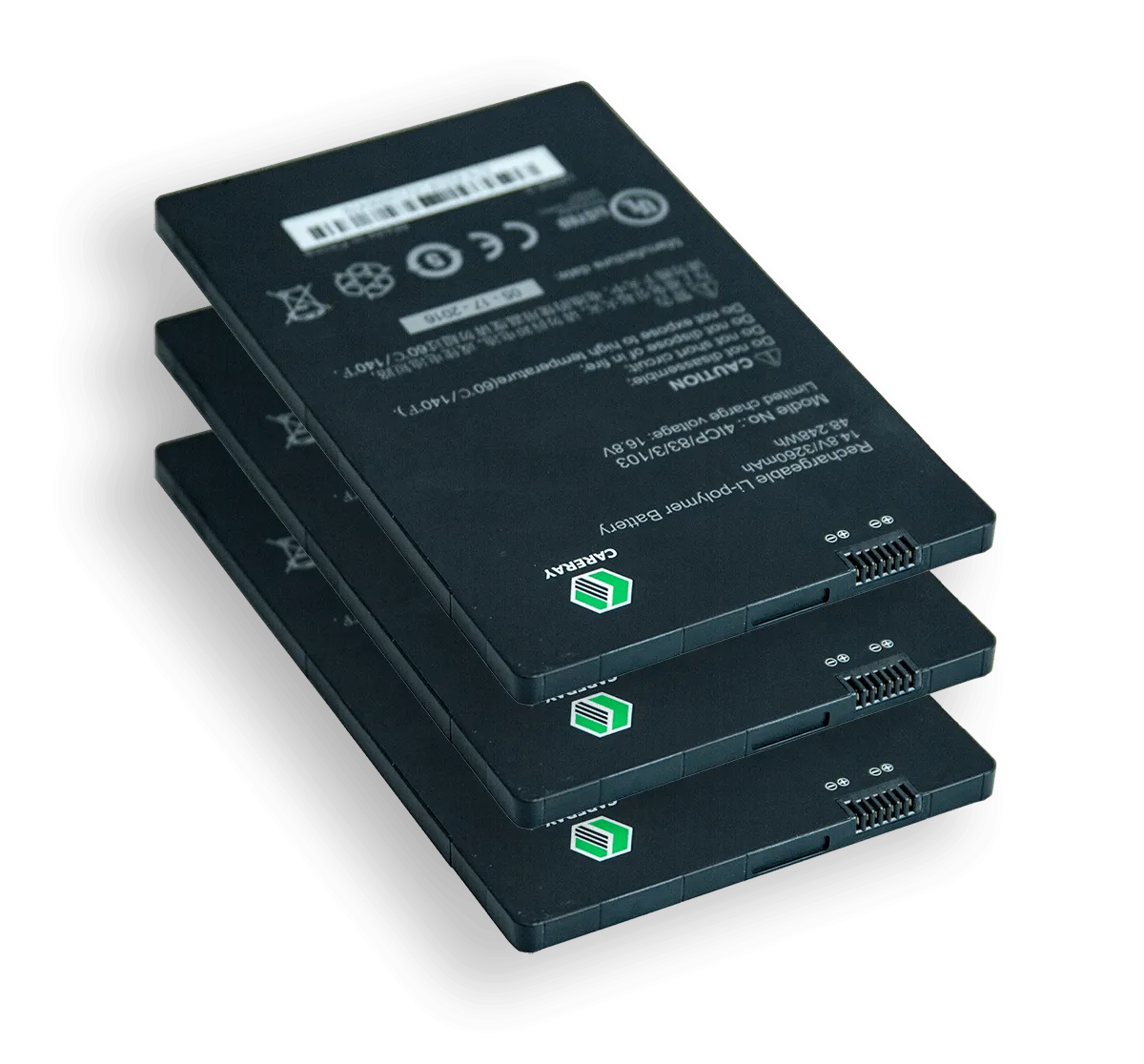

Batteries 1 - Charging Station

O and R DR Acquisition Console Software

• Patient Registration: Manually or (DMWL) DICOM Modality Worklist. DICOM Modality Worklist is a standard feature and is available for use provided that the HIS/RIS accommodates Modality Worklist.

• Processing Parameter Settings: Pediatric, Small, Medium, Large Adult, Edge Enhancement, Histogram, Contrast, Latitude

• Image Acquisition & Review QC: flip (horizontal/vertical), rotate (clockwise/counter-clockwise), zoom, pan, window/level, magnifying glass, crop, annotations line measurement, angle measurement, free text, arrow, L&R Markers, Cobb’s Angle Measurement, Norberg Angle Measurement • Allows for secondary/dual monitor display • Emergency Mode: Allows exam to be conducted while no patient data available • Image Preview • DICOM Send to PACS, Auto-PACS Send

• DICOM Print to DICOM Printer
• DICOM Storage Commitment
• Hard disk capacity notification bar
• Export images formatted as .jpg, .png, .bmp, and DICOM (with or without Viewer) to CD or other media
• Export/Back-up to DVD/Removable Drive
• Procedure Code Matching – Matches body part and projection items with RIS/HIS code
• Database: Shows list of stored images after acquisition
• Compare two images side-by-side
• Delete Image
• Repeat- Reject function with operator statistics
• Grid Line Removal
• Stitching Software
• AED Mode – Automatic Exposure Detection: The detector detects the actual amount of x-rays without any connection to the X-ray generator, and then performs image acquiring according to image acquisition time and transmits the image data – No signal used (no need to connect to generator interface cable)
• Exposure Index
